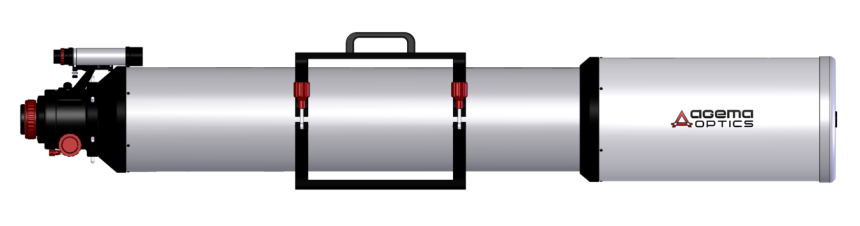

AGEMA SD 180 SPECIFICATION (PRELIMINARY)
| Optical Design | Fluorite Doublet |
| Clear Aperture | 180 mm |
| Focal Length | 1620 mm |
| Focal Ratio | 9 |
| Resolution | 0.64" |
| LGP | 900 (6mm eye pupil) |
| Limiting Magnitude | 13.4 m |
| Image Circle with FF | 60 mm |
| Coating | BBAR < 0.5%, (420 - 720 nm) |
| Finder Scope | 30 mm, 6X, 8 deg. |
| Focuser | 4.0-inch, dual-speed |
| OTA Weight | 19.0 kg - estimated |
| Rings | TBD |
| Attachment Plate | TBD |
| Application | Visual and Imaging (Field Flattener supported) |
| OTA Price | $ 17,900 |
| Rings/Plates Price | $ 690 |
| Finder/Stand Price | $ TBD |
CHROMATIC CORRECTION GRAPHS
IMAGE QUALITY WITH FIELD FLATTENER
TRANSPORTATION DIMENSIONS
Technical Specification is subject to change without notice
